Product Description

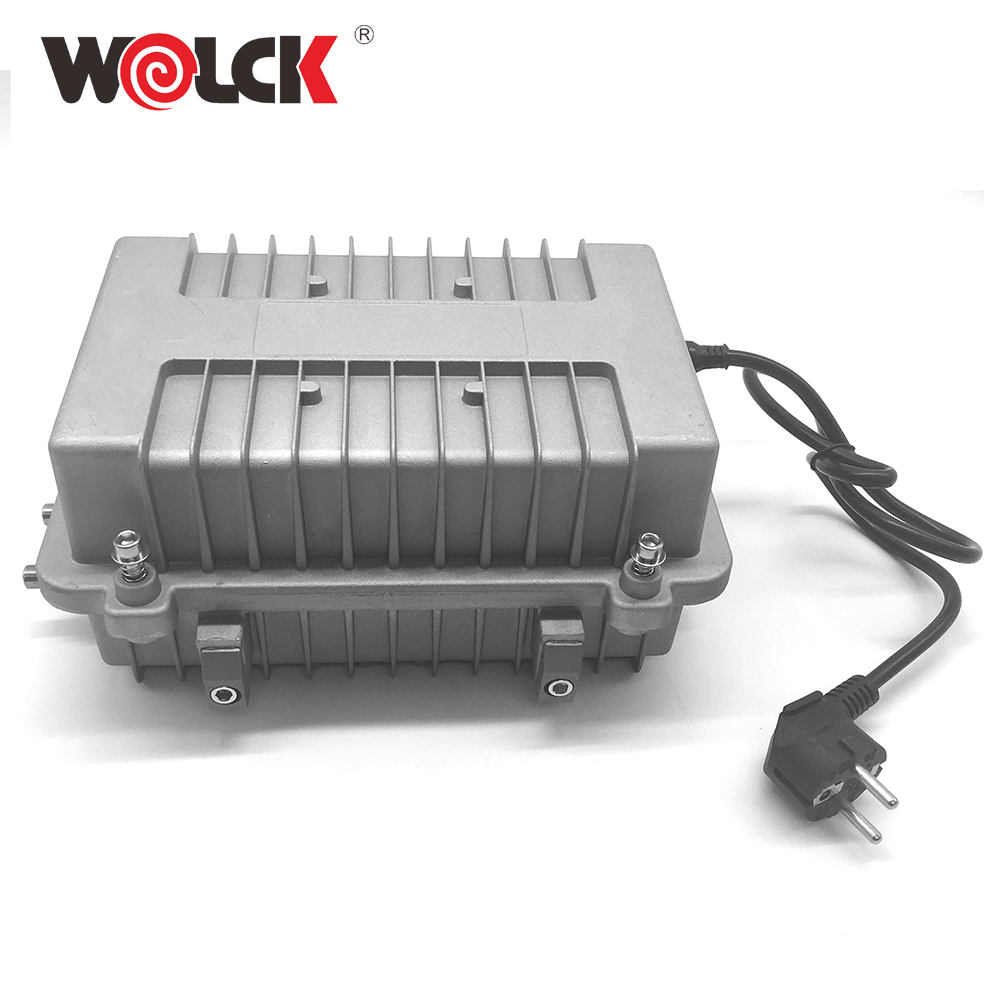

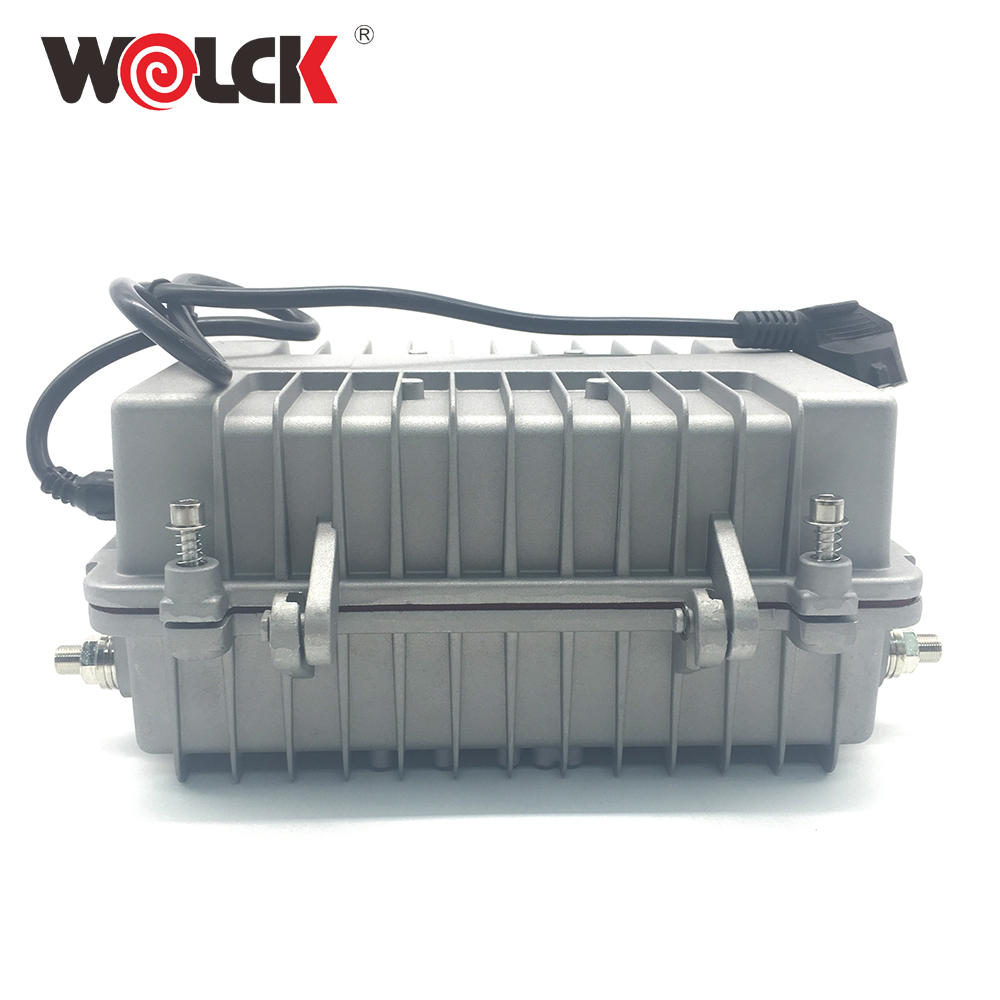

VR-860T Serial optical receiver is bidirectional design and suitable for weatherproof HFC network transmitting products. To make sure the network design target and actual working ability, through reasonable circuit and design, select suitable parts to reduce the cost, modularize, collocate freely according to customer requirement.
Use PIN diode or receiving mould, RF-signal amplify, impulse power, one way individual output or two output. Maximum output level is 112dbuV (0dbm input power), every output can be used as return path.
Product Features
Use PIN diode or optical receiving module.
Receiving Optical Wavelength: 1290mn~1600nm.
1000MHz design, (750/862MHz).
Plug-in bidirectional filter: 30/47MHz~42/54MHz~65/87MHz Optional.
Plug-in Circuit improve non-linear distortion.

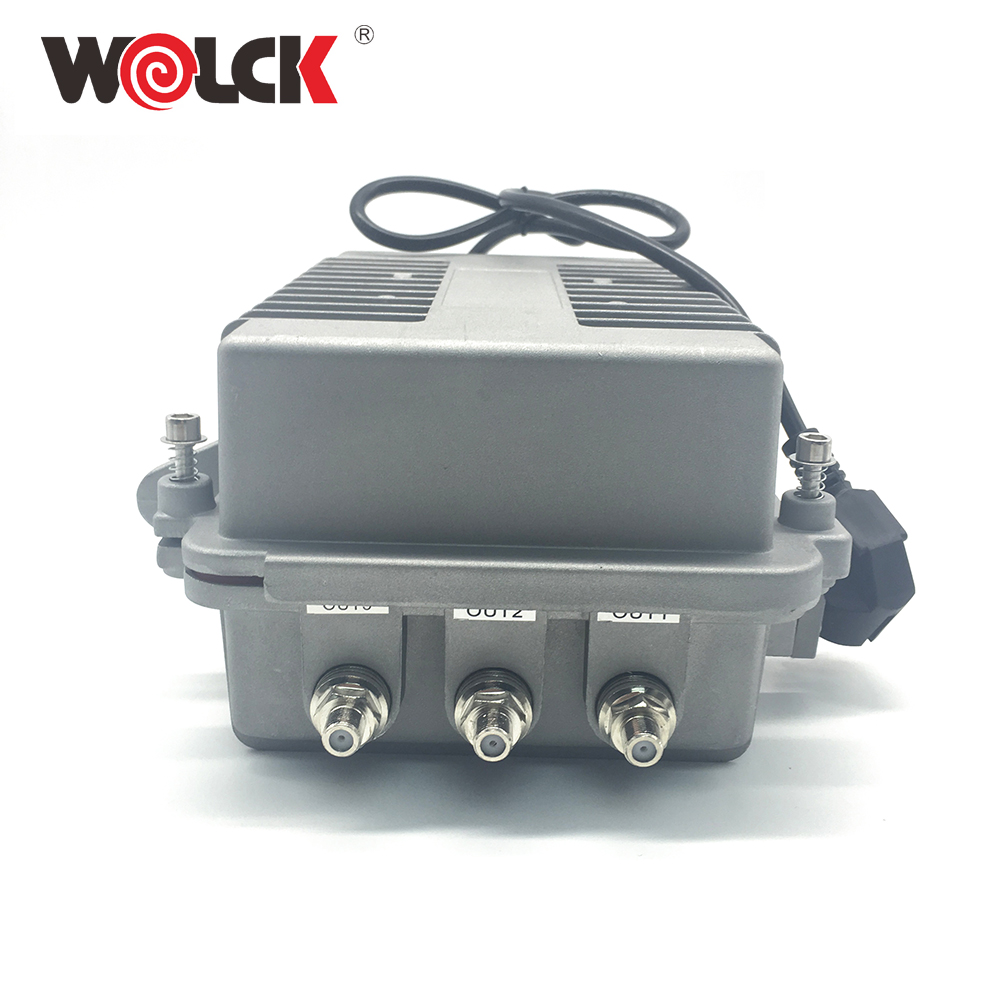

1 way coupler output or 2 splitter output.
Ruturn path can use at any time and update Network. (option：VRT-200X/P Return transmitter)
With optical power monitor.
Power supply:60V/AC and 220V/AC optional.
SMPS and with wide range of voltage.
Technical Parameters
| Frequency range | 45~750/862MHz |
| Flatness in band | ± 0.75dB |
| Return loss | ≥ 16dB(45~750MHz) ≥ 14dB(750~862MHz) |
| Nominal output level | 112dBμV |
| Max. Output Level | 112dBμV（0dBm） |
| CNR | ≥ 51dB |
| C/CSO | ≥ 60dB |
| C/CTB | ≥ 65dB |
| Gain Adjustment Range | 0~20dB |
| Slope Adjustment Range | 0~12dB |
| Test Level | -20dB±1dB |
| Amplify Gain | 18dB~28dB Optional |
| Frequency Range | 5~200MHz |
| Return path OT. Flatness | ± 0.75dB |
| Output Impedance | 75Ω |
| Connector Type | F-connector or 5/8’’ 24 connector |
| Power Supply | 60V /AC or 220V / DC48V |
| Current | 10A (60V/AC Power Supply) |
| Power Consumption | 30W Max |
